Guoliang company owns three wholly-owned subsidiaries and one branch. It is a high-tech enterprise specializing in the integrated solution of refractories for high-temperature industry, providing customers with general contracting services and refractory products.

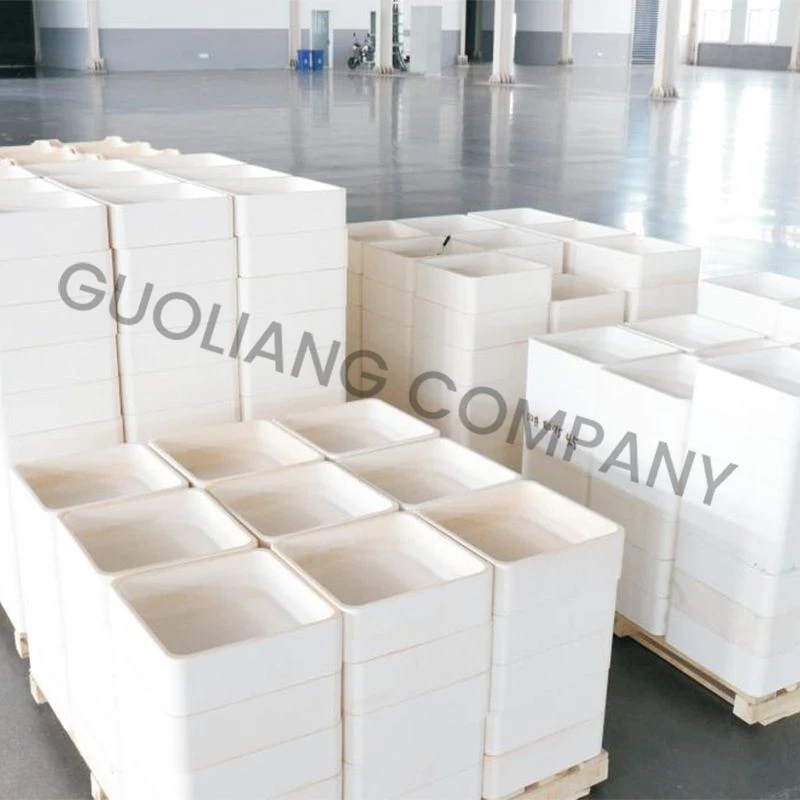

GUOLIANG Mullite Cordierite Saggar is designed for repeated high-temperature firing and sintering processes, particularly for new energy battery materials. Combining excellent thermal shock stability, low thermal expansion, good corrosion resistance and reliable mechanical strength, it provides stable support for industrial calcination processes.
Our mullite cordierite saggars are suitable for the sintering of ternary lithium battery cathode materials, sodium-ion battery materials, negative electrode materials and other high-temperature material processing applications.
As a professional Mullite Cordierite Saggar manufacturer, GUOLIANG provides multiple material grades and customized sagger solutions according to kiln conditions, operating temperatures and customer production requirements.
Used for sintering of Cathode materials for ternary lithium batteries and sodium-ion batteries
Used in Negative Electrode Material Production
Used in sponge iron production
Used in non-ferrous metal smelting
Share:
PRODUCT FUNCTION
Acid and alkali resistance
Ultra-low coefficient of expansion
Low high-temperature creep
Excellent thermal shock stability
High thermal stability, and no cracking at 1000℃ water cooling
Low impurities and high quality of burned rare earths
Fast heat conduction, reducing energy consumption; Low weight, reducing labor intensity
TECHNICAL SPECIFICATIONS
|
Index |
MLQ-1 |
MLQ-2 |
MLQ-3 |
|
Al₂O₃ % ≥ |
≥51 |
≥60 |
≥ 60 |
|
MgO % ≥ |
≤5.50 |
5-10 |
6-15 |
|
Fe2O3 ≥ |
≤0.80 |
≤0.70 |
≤0.37 |
|
Bulk density g/cm3 |
≥ 1.80 |
≥2.00 |
≥2.05 |
|
Apparent porosity % |
≤ 28 |
≤26 |
≤ 25 |
|
Room temperature flexural strength (MPa) |
≥6 |
≥6 |
≥6.50 |
|
Room temperature compressive strength (MPa) |
≥37 |
≥40 |
≥ 40 |
|
Thermal shock frequency(1100℃ water-cooling) |
≥30 |
≥35 |
≥30 |
Saggers play an important role in the calcination of lithium battery cathode materials. During repeated firing cycles, the sagger must withstand rapid temperature changes, chemical erosion, powder loading and long-term high-temperature operation.
GUOLIANG Mullite Cordierite Sagger combines mullite's high-temperature strength with cordierite's low thermal expansion and thermal shock stability, making it suitable for demanding battery material sintering processes.
Typical applications include:
Repeated heating and cooling can cause cracking and structural damage in kiln furniture. The low thermal expansion and thermal stability of our mullite cordierite material help the saggar withstand repeated firing cycles.
An ultra-low coefficient of thermal expansion helps minimize dimensional changes during temperature fluctuations and contributes to stable operation during continuous production.
The material provides resistance to chemical attack under demanding firing conditions, helping reduce premature deterioration of the saggar.
Good structural stability at elevated temperatures helps maintain the geometry of the saggar during long firing cycles and repeated kiln loading.
Controlled material composition helps reduce unwanted contamination during battery material calcination, an important consideration in high-purity new energy material production.
Good heat-transfer performance supports more uniform heating of the material inside the saggar and can contribute to efficient kiln operation.
GUOLIANG supplies both mullite cordierite and SiC saggars for new energy material processing.
Mullite Cordierite Saggar is particularly suitable where low thermal expansion, thermal shock stability and stable repeated firing performance are important.
SiC Saggar can be considered for applications requiring higher thermal conductivity and demanding high-temperature mechanical performance.
The appropriate material should be selected according to firing temperature, kiln atmosphere, processed material and expected operating conditions.
Battery material production lines may use different kiln systems, loading methods and sagger dimensions. GUOLIANG provides custom Mullite Cordierite Saggars according to customer production requirements.
Customization can include:
For replacement projects, customers can also provide an existing sagger drawing or sample for technical evaluation.
GUOLIANG specializes in refractory and high-temperature material solutions for industrial applications. Our technical and production teams support customers from material selection and product design through manufacturing and application.
For battery material manufacturers, we focus on matching the Mullite Cordierite Saggar with actual kiln conditions, thermal cycles and material chemistry to achieve stable production performance.
A Mullite Cordierite Saggar is a refractory container manufactured from mullite-cordierite ceramic materials and used to hold powders or other materials during high-temperature firing and sintering.
Yes. They are widely used as kiln containers for the high-temperature sintering of lithium battery cathode materials because of their thermal shock stability, low thermal expansion and high-temperature performance.
Yes. GUOLIANG Mullite Cordierite Saggars can be used for sodium-ion battery material firing according to the required process conditions.
GUOLIANG currently provides MLQ-1, MLQ-2 and MLQ-3 grades with different chemical compositions, density, porosity and thermal shock performance.
Yes. Dimensions and structures can be customized according to kiln size, loading requirements, drawings and operating conditions.
Please provide the sagger dimensions, required quantity, application, firing temperature, material being processed and drawings or samples if available.
Send us your sagger dimensions, material type, operating temperature and kiln conditions. GUOLIANG will help you select a suitable Mullite Cordierite Saggar grade for your production process.
