Steel Ladle Refractory Lining System: Components, Functions and Material Selection

A steel ladle is not simply a vessel for transporting molten steel. During steelmaking and secondary refining, it is exposed to high temperatures, aggressive slag, thermal cycling, molten steel erosion and mechanical impact.

For this reason, the steel ladle refractory lining system is normally designed as a combination of different refractory materials and functional components rather than a single lining material.

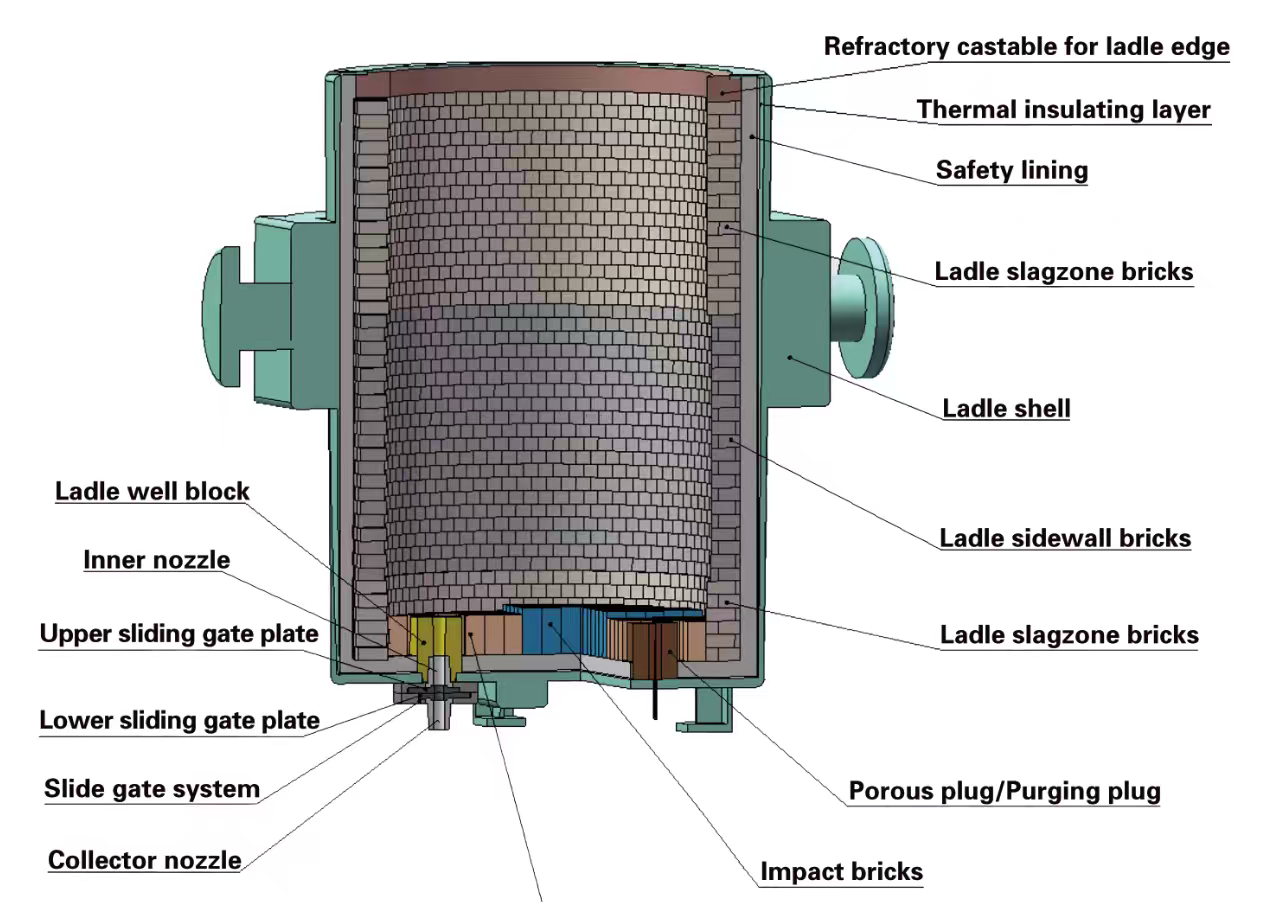

As shown in the ladle structure diagram, the complete system includes the thermal insulating layer, safety lining, working lining bricks, slag zone bricks, impact bricks, refractory castable, well block, inner nozzle, slide gate plates, collector nozzle and porous plug.

Each component performs a different function and must be matched to the operating conditions of the steel plant.

Steel Ladle Refractory Lining Structure

A typical steel ladle lining can be divided into several functional layers:

Ladle Shell → Thermal Insulating Layer → Safety Lining → Working Lining

This multilayer structure protects the steel shell while providing sufficient thermal insulation and resistance to molten steel and slag attack.

Ladle Shell

The ladle shell is the external steel structure that provides mechanical support for the entire vessel.

Because carbon steel cannot withstand direct contact with molten steel at steelmaking temperatures, the shell must be completely protected by refractory and insulating materials.

Any excessive thinning or failure of the refractory lining can increase the thermal load on the shell and create serious operational risks.

Thermal Insulating Layer

The thermal insulating layer is positioned between the ladle shell and refractory lining.

Its main functions are:

● Reduce heat loss through the ladle wall
● Lower the external shell temperature
● Improve thermal efficiency
● Help maintain molten steel temperature during refining and transportation

The insulating layer does not normally contact molten steel directly, so its requirements differ significantly from those of working lining refractories.

Safety Lining

The safety lining, also called the permanent lining or backup lining in some ladle designs, provides secondary protection behind the working lining.

Its main purpose is to protect the steel shell if the working lining becomes excessively worn.

The safety lining should provide:

● Structural stability
● Thermal resistance
● Adequate mechanical strength
● Long service life
● Reliable support for the working lining

Unlike the working lining, the safety lining is not normally replaced after every ladle campaign.

Ladle Working Lining Bricks

The working lining is the refractory layer that comes into direct contact with molten steel and slag.

Different areas of the ladle experience very different wear mechanisms, so the working lining is usually divided into several zones.

Ladle Slag Zone Bricks

The slag zone is one of the most severely attacked areas in a steel ladle.

During secondary refining, the upper lining is exposed to high-basicity slag, high temperatures, chemical penetration and repeated thermal cycling.

For this reason, ladle slag zone bricks require particularly strong corrosion resistance.

Typical requirements include:

● High resistance to basic slag
● Low slag penetration
● Good thermal shock resistance
● Strong resistance to erosion
● Good high-temperature stability

Magnesia carbon bricks are widely used in the ladle slag line because the magnesia phase provides strong resistance to basic slag while carbon improves thermal shock and slag penetration resistance.

The exact brick grade should be selected according to slag chemistry, refining process, operating temperature and expected ladle campaign life.

Ladle Sidewall Bricks

Ladle sidewall bricks form the main working lining around the ladle barrel.

Compared with the slag line, the sidewall is generally exposed to less severe slag attack but remains subject to:

● Molten steel erosion
● Thermal cycling
● Refractory penetration
● Mechanical wear
● Long holding times

Sidewall refractory selection therefore requires a balance between corrosion resistance, thermal shock performance, mechanical strength and overall refractory cost.

Depending on steel grade and operating conditions, different magnesia-based, alumina-based or other refractory systems may be used.

Ladle Bottom and Impact Bricks

The bottom of a steel ladle experiences a different wear mechanism from the sidewall.

When molten steel is tapped into the ladle, the incoming steel stream can generate significant mechanical and hydraulic impact.

The impact zone therefore requires specially designed impact bricks with high:

● Mechanical strength
● Erosion resistance
● Thermal shock resistance
● Structural stability

If the impact zone wears much faster than surrounding areas, the entire ladle campaign may have to be stopped even when the remaining lining still has usable thickness.

For this reason, reinforced refractory materials are often used in high-impact areas.

Refractory Castable for Ladle Edge

The upper ladle edge is often lined or repaired with refractory castable.

Castables are useful in this area because they can adapt to irregular shapes around the ladle rim and structural components.

A suitable ladle castable should provide:

● High-temperature resistance
● Good adhesion
● Mechanical strength
● Thermal shock resistance
● Easy installation and repair

Castables may also be used in selected bottom, permanent lining or repair areas depending on the specific ladle design.

Ladle Well Block

The ladle well block is installed around the steel discharge system at the bottom of the ladle.

It provides structural support for the inner nozzle and creates a stable refractory interface between the ladle lining and flow-control system.

Because it is exposed to molten steel, thermal cycling and mechanical stress, the well block requires:

● Good erosion resistance
● High mechanical strength
● Dimensional accuracy
● Thermal shock resistance
● Compatibility with the inner nozzle

Incorrect matching between the well block and nozzle may result in installation gaps, steel penetration or unstable service performance.

Inner Nozzle

The inner nozzle connects the molten steel inside the ladle with the slide gate system.

During casting, molten steel flows through this nozzle before entering the collector nozzle and tundish.

The inner nozzle therefore requires:

● High erosion resistance
● Good thermal shock resistance
● Low molten steel penetration
● Accurate dimensions
● Stable bore geometry

Nozzle erosion can change the effective flow area, making dimensional consistency particularly important.

Sliding Gate Plates

The ladle flow-control system normally contains an upper sliding gate plate and lower sliding gate plate.

These plates move relative to each other to regulate or stop molten steel flow.

Sliding gate plates operate under extremely demanding conditions because their bore area is repeatedly exposed to high-temperature molten steel.

Key performance requirements include:

● Strong erosion resistance
● High thermal shock resistance
● Good oxidation resistance
● High mechanical strength
● Excellent dimensional accuracy
● Stable sliding surface

The flatness and dimensional accuracy of the plate are important for maintaining effective sealing between the upper and lower plates.

Slide Gate System

The slide gate system is the mechanical assembly used to control the movement of the refractory plates.

Together with the inner nozzle, upper plate, lower plate and collector nozzle, it forms the ladle molten steel discharge system.

Stable performance depends not only on refractory material quality but also on accurate matching between all components.

The complete flow path can be summarized as:

Molten Steel → Inner Nozzle → Upper Sliding Gate Plate → Lower Sliding Gate Plate → Collector Nozzle → Tundish

Collector Nozzle

The collector nozzle is installed beneath the slide gate plate and directs molten steel from the ladle toward the tundish.

It must withstand:

● Continuous molten steel erosion
● Thermal shock
● Mechanical stress
● High-temperature chemical attack

For continuous casting operations, stable collector nozzle geometry helps maintain predictable steel flow.

Porous Plug / Purging Plug

The porous plug, also known as a purging plug, is installed in the ladle bottom and introduces argon gas into the molten steel.

Argon bubbling performs several important metallurgical functions:

● Promotes molten steel circulation
● Helps homogenize steel temperature
● Improves chemical composition uniformity
● Supports inclusion flotation
● Assists secondary refining processes

The purging plug must provide both reliable gas permeability and sufficient resistance to molten steel erosion.

Its performance is influenced by material composition, pore structure, gas flow design and installation quality.

Why Different Ladle Zones Need Different Refractories

Using the same refractory material throughout the ladle may appear simpler, but it is rarely the most effective lining strategy.

Different zones experience different dominant wear mechanisms.

This is why modern steel ladle refractory design is based on zone-specific lining selection.

Key Factors in Steel Ladle Refractory Selection

Before selecting a ladle refractory system, steel plants should provide the refractory manufacturer with actual operating information.

Important parameters include:

● Ladle capacity
● Steel grade
● Refining process
● LF, VD, VOD or RH operating conditions
● Operating temperature
● Slag composition
● Holding time
● Argon stirring intensity
● Current lining material
● Current ladle campaign life
● Main wear areas
● Target refractory life

These factors help determine the appropriate refractory grade for each ladle zone.

A Complete Ladle Refractory System Is More Than Bricks

A reliable steel ladle lining requires coordinated performance between shaped refractories, monolithic materials and functional components.

A complete system may include:

Working Lining: ladle sidewall bricks and slag zone bricks
Impact Protection: impact bricks
Backup Protection: safety lining
Thermal Control: insulating layer
Edge & Repair: refractory castable
Flow Control: well block, inner nozzle, sliding gate plates and collector nozzle
Argon Stirring: porous plug / purging plug

If one critical component fails prematurely, it may limit the service life of the entire ladle.

For this reason, refractory selection should focus on the performance of the complete ladle refractory system, not only individual products.

Conclusion

A steel ladle uses multiple refractory materials because every zone performs a different function and experiences different operating stresses.

Ladle slag zone bricks resist aggressive slag corrosion, sidewall bricks protect against molten steel erosion, impact bricks withstand tapping impact, and the well block, nozzle, sliding gate plates and collector nozzle control molten steel discharge.

At the same time, the porous plug supports argon stirring, while the insulating and safety linings protect the ladle shell.

The best ladle refractory configuration therefore depends on steel grade, slag chemistry, refining process, temperature, wear pattern and expected campaign life.
